>>Graphite sheet
The chemical composition of the highly thermally conductive graphite material is mainly a single carbon (C) element, which is a natural elemental mineral. The film polymer compound can be obtained by chemical method under high temperature and high pressure to obtain a graphitized film. Because carbon is a non-metal element, it has the conductivity and thermal conductivity of the metal material, has the same plasticity as the organic plastic, and has special thermal properties. , chemical stability, lubrication and can be applied to solid surfaces and other good process properties, therefore, thermal graphite has been widely used in many fields such as electronics, communications, lighting, aerospace and defense military.

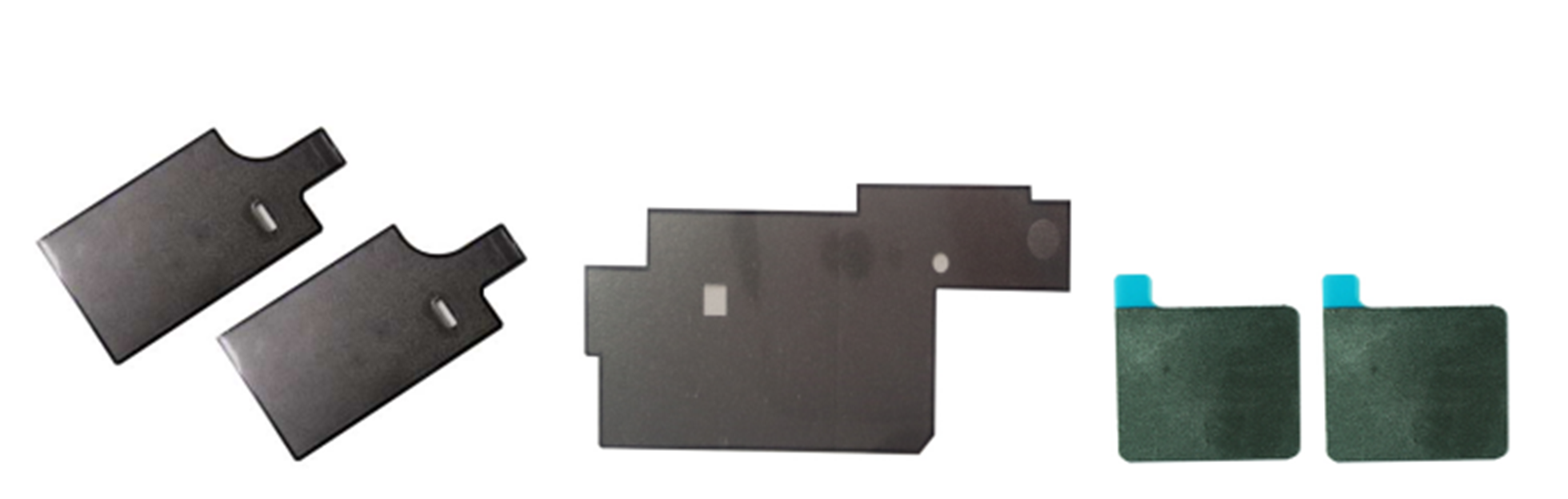

The GR series is a flexible thermal graphite sheet, which is made of 99% natural graphite or synthetic, with a thermal conductivity of 300W/m.k-1750W/m.k. It has an anisotropic thermal conductivity and is a good thermal conductive graphite material.
characteristic:
High thermal conductivity, Z axis up to 15 W/m.K, X-Y axis up to 300~1750 W/m.K;
Suitable for a variety of complex heat-dissipating surfaces that do not require insulation, as well as products with pressure-sensitive adhesives;
Thickness 0.01~1.00mm;
Easy to process, can be die cut into a specified shape;
Can replace thermal grease, phase change material and heat pipe;
EMI shielding to protect sensitive electronic components.
